COMPRESSION FITTINGS (C)
|
|
|

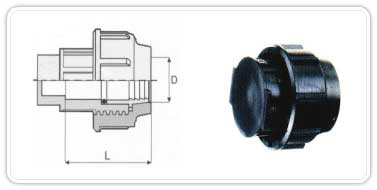

End Plug (EP)
|
|
|
Range |
Dimension |
|
D |
L |
|
16 |
45 |
|
20 |
50 |
|
25 |
57 |
|
32 |
64 |
|
40 |
76 |
|
50 |
88 |
|
63 |
103 |
|
75 |
118 |
|
90 |
136 |
|
110 |
151 |
|
|
|
CODE |
| JP-C-EP001 |
| JP-C-EP002 |
| JP-C-EP003 |
| JP-C-EP004 |
| JP-C-EP005 |
| JP-C-EP006 |
| JP-C-EP007 |
| JP-C-EP008 |
| JP-C-EP009 |
| JP-C-EP010 |
|
|
|
 |
|
|

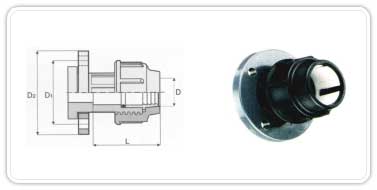

Flange Adaptor (JF)
|
|
|
|
 |
|
|
Range |
Dimension |
|
DxDN |
L1 |
D1 |
D2 |
|
75x2 ½" |
118 |
145 |
185 |
|
75x3" |
118 |
160 |
200 |
|
90x3" |
136 |
160 |
200 |
|
90x4" |
136 |
180 |
220 |
|
110x4" |
151 |
180 |
220 |
|
|
|
CODE |
| JP-C-JF001 |
| JP-C-JF002 |
| JP-C-JF003 |
| JP-C-JF004 |
| JP-C-JF005 |
|
|
